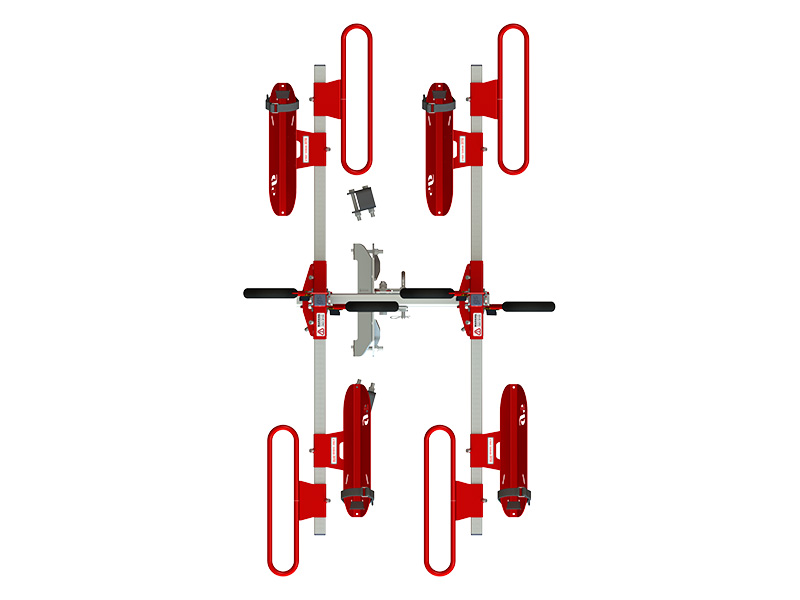

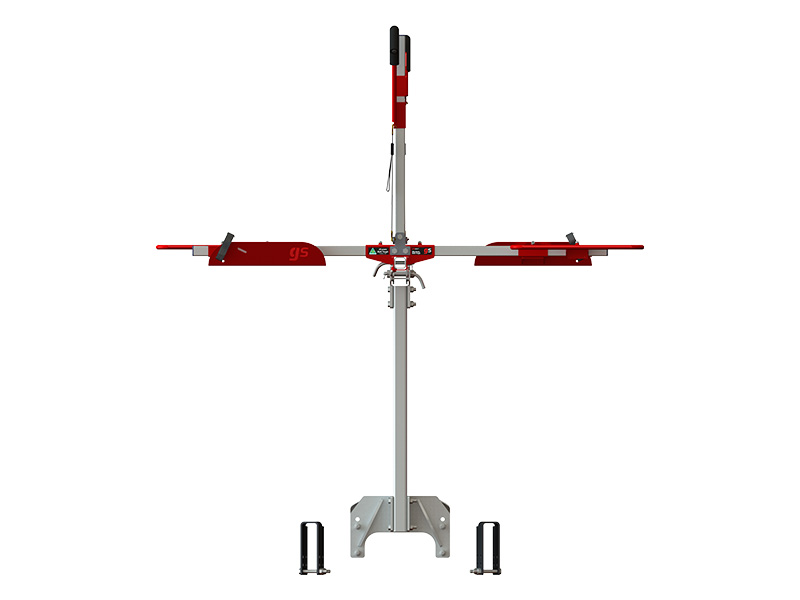

GripSport Van Rack – 4 Bike
$1,135.00
Gripsport Van-Racks are built tough, we agree and have extensively tested their racks on some of most challenging roads in OZ. Not only are they indestructible, Gripsport van racks fit almost every RV. We have installed them on nearly every brand caravan or camper-trailer, check out our Van Rack Gallery to see hundreds of rack fits. Gripsport’s innovative design also allows you to quickly and easily swap it over to your vehicle tow bar.
They are the perfect van-rack carrier system that can be mounted to either a caravan or camper-trailer drawbar or rear bumper. The optional Gripsport Tilting Mechanism provides instant access to your belongings stored behind or under your bikes without having to remove the rack. Similarly our Bush Chook Mid-Post Tilting Mechanism allows even more access, primarily designed for Expanda type vans, it can also be used wherever extra access is required.
PLEASE NOTE: There are three separate components required to fit a van rack: Rack Assembly, Bolt on Mount and a Cross Member, these are priced individually. The product price listed here is for a Gripsport fixed van rack, the bolt on mount, tilting mechanism and cross member are OPTIONAL. Please choose these if required from the selections available below.
PLEASE READ: For all of the relevant info about van racks and to fully understand the correct procedure how to fit Gripsport van racks please check our GripSport Van Rack info and fitting guide or see info further below.
all bikes
Gripsport van-racks can accommodate road, MTB, family and kids’ bikes, e-bikes, and fat tyre bikes.
e bikes
This rack can transport 2 bikes, weighing up to 30kg each. Designed for Light Off-Road Use to Medium Off Road Use only (refer to Terrain Guide).
made right here
All Gripsport racks are designed, tested, and manufactured right here in Australia and come with a structural warranty. They are built tough and to keep them looking and performing at their best we recommend following Gripsports product care & use guidelines.
| Specification | |
|---|---|
| Bike Model | Van-Rack |
| Bike Capacity/Type | 4 Bikes/MTB, Road, Fat, E-Bike |
| Weight Capacity | 30kgs Per Bike (120kgs Total) |
| Carrier Weight | 36kgs (+13kgs with Bolt-on Mount) |
| Universal Cross Member | Optional – Compatible with most van types, no welding required, bolts onto drawbar
Universal Cross Member Fitting Guide
|
| Bolt-on Mount | Optional – View Gripsport Fitting Guide |
| Fast Loading | |
| Tilting Function | Optional, either Gripsport top-post tilting mechanism or Bush Chook mid-post tilting mechanism |
| Off-Road Capable | |
| Light Assembly | Optional (for use when fitted to vehicle) |
| Ramp Available | |
| Structural Guarantee | 5 Years – View Warranty |
| 1 > 2, 3 or 4 Bike Conversion | |
| Vehicle Conversion |
fitting gripsport van racks
NOTE: For all of the relevant info about van racks and to fully understand the correct procedure how to fit Gripsport van racks please check our GripSport Van Rack info and fitting guide. Check our FAQ guide at the bottom of this page for even more information. Don’t pay $400-$500 to get your rack fitted, select free assembly and fitting for more information on our free assembly and fitting service for Perth Metro customers – conditions apply (fabrication not included).
universal cross member
DIY fitting is now possible with Gripsport’s NEW Universal Cross Member (UCM) above, this new product is compatible with all van racks and simply bolts onto your drawbar. If you don’t have a suitable cross member, simply select the correct size before checkout for your drawbar. Check out the Gripsport UCM Fitting Guide for easy installation.
loading ramp
Gripsport have just released a NEW Loading Ramp (above), load your bikes onto your GripSport Van Rack or GS Adventure Rack effortlessly with the Bike Rack Loading Ramp. Designed for riders who use a Hoop and Taco Wheel Holding Setup, this telescopic aluminium ramp expands up to 2.1 metres, offering a smooth and secure way to roll your bike into place.
new mid-post tilting mechanism
After much research and testing, we have released a new mid-post tilting mechanism, this is a game changer for owners of Expanda type vans, Ezytrail Parkes & Ceduna Models, forward fold campers, vans with short drawbars requiring front window/boot access and vans with large hinged front opening boots. There is no need to remove the rack or bikes in order to extend beds or gain access to storage boots. It can also be used on a standard setup where you simply would like more access. This is compatible with Gripsport’s complete van rack range.
towbar adapter
The Gripsport Towbar Adapter allows you to swap your Van-Rack from caravan to car quickly and easily.
At Bush Chook RV & Leisure we offer a complimentary assembly and fitting service for customers in the Perth Metro area. If you can get your van to us or you live within a 20km radius of our location (we can fit at your van’s location), we offer free assembly and fitting utilising Gripsport’s Universal Cross Member or if your van already has a suitable cross member. If fabrication is required, you will need to take your van to our fabricator who is based in Wangara, the factory is easy to access with a van.
Don’t pay $400-$500 to fit your Gripsport van rack. No other dealer offers assembly and fitting for free. (NOTE: Does not include fabricating cross member or custom mounting).
Fabrication of the cross member is usually around $150, this can be paid directly to the fabricator. We plan the location of the cross member, assist the fabricator with setting up and install the completed member and rack for no charge. Installation usually takes about 1 hour and customers can wait at the factory whilst fitting.
Van Racks

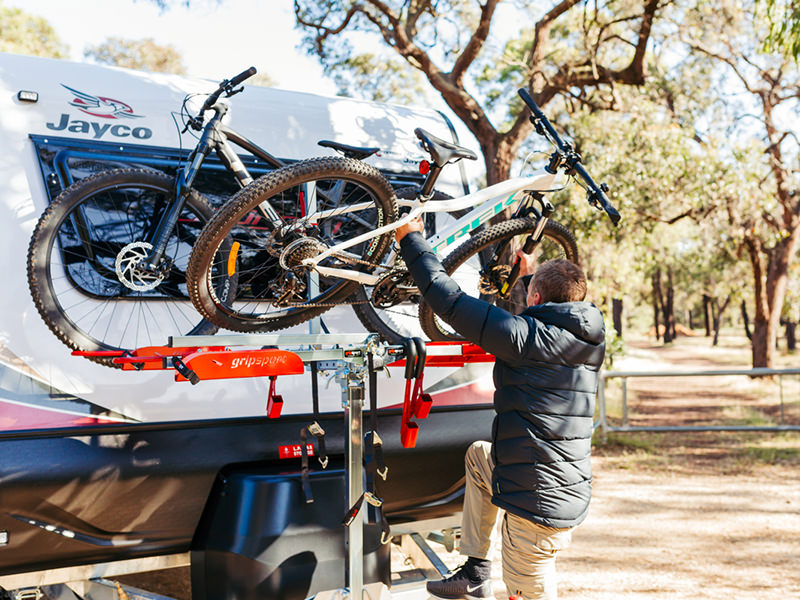

Gripsport Van Racks are generally fitted to caravan drawbars. A cross member is required to house the Gripsport bolt on mount. Mostly there is no direct welding required unless a custom mounting setup is required. Check the below link for further information.
Yes, Gripsport have recently released the Gripsport Universal Cross Member (UCM). This is an innovative bolt-on solution for mounting a GripSport bike rack or other accessories to your caravan or camper drawbar, without the need for welding. Designed for DIY fitment, the UCM ensures a seamless, low-profile installation while maintaining maximum strength and durability.
Whether you’re adding a bike rack or other essential gear, the Universal Cross Member (UCM) makes mounting simple, safe, and hassle-free.
If you have a short drawbar or the UCM is not compatible because of unmovable items on your drawbar, a custom made cross member maybe required. Generally this does NOT require any direct welding as Gripsport supply “U” shaped “saddles” with the bolt on mount and the new cross member is welded onto them.
Please Note: NOTE: UCM measurement is taken from outside to outside of the chassis rails, at the largest point where you want the cross member installed.
At Bush Chook RV & Leisure we offer a complimentary assembly and fitting service for customers in the Perth Metro area. If you can get your van to us or you live within a 20km radius of our location (we can fit at your van’s location), we offer free assembly and fitting utilising Gripsport’s Universal Cross Member or if your van already has a suitable cross member. If fabrication is required, you will need to take your van to our fabricator who is based in Wangara, the factory is easy to access with a van.
Don’t pay $400-$500 to fit your Gripsport van rack. No other dealer offers assembly and fitting for free. (NOTE: Does not include fabricating cross member or custom mounting).
Fabrication of the cross member is usually around $150, this can be paid directly to the fabricator. We plan the location of the cross member, assist the fabricator with setting up and install the completed member and rack for no charge. Installation usually takes about 1 hour and customers can wait at the factory whilst fitting.
Yes, Gripsport have recently released the Gripsport Universal Cross Member (UCM). This is an innovative bolt-on solution for mounting a GripSport bike rack or other accessories to your caravan or camper drawbar, without the need for welding. Designed for DIY fitment, the UCM ensures a seamless, low-profile installation while maintaining maximum strength and durability.
Whether you’re adding a bike rack or other essential gear, the Universal Cross Member (UCM) makes mounting simple, safe, and hassle-free.
If you have a short drawbar or the UCM is not compatible because of unmovable items on your drawbar, a custom made cross member maybe required. Generally this does NOT require any direct welding as Gripsport supply “U” shaped “saddles” with the bolt on mount and the new cross member is welded onto them.
Please Note: NOTE: UCM measurement is taken from outside to outside of the chassis rails, at the largest point where you want the cross member installed.
The Gripsport Towbar Adapter allows you to swap your Van-Rack from caravan to car quickly and easily, watch the video in the link below for full details.
The Adapter is made from heavy-duty zinc plated steel and is suitable for 2″ (50mm) square hitch receivers (Tongue Mount available in 2-Bike Tilting configuration only).
At Bush Chook RV & Leisure we offer a complimentary assembly and fitting service for customers in the Perth Metro area. If you can get your van to us or you live within a 20km radius of our location (we can fit at your van’s location), we offer free assembly and fitting utilising Gripsport’s Universal Cross Member or if your van already has a suitable cross member. If fabrication is required, you will need to take your van to our fabricator who is based in Wangara, the factory is easy to access with a van.
Don’t pay $400-$500 to fit your Gripsport van rack. No other dealer offers assembly and fitting for free. (NOTE: Does not include fabricating cross member or custom mounting).
Fabrication of the cross member is usually around $150, this can be paid directly to the fabricator. We plan the location of the cross member, assist the fabricator with setting up and install the completed member and rack for no charge. Installation usually takes about 1 hour and customers can wait at the factory whilst fitting.
Gripsport have just released a NEW loading ramp, load your bikes onto your GripSport Van Rack or GS Adventure Rack effortlessly with the Bike Rack Loading Ramp. Designed for riders who use a Hoop and Taco Wheel Holding Setup, this telescopic aluminium ramp expands up to 2.1 metres, offering a smooth and secure way to roll your bike into place.
Vans like Jayco Expanda’s beds push out over the drawbar, this means the bikes and rack will be in the way. You now have two options to fit a Gripsport Van Rack, either the traditional method of installing a quick release post or our new Mid-Post Tilting Mechanism. This new system means that the rack and bikes can remain by simply tilting the post, select the link below for more information.
Ezytrail parkes & ceduna models
For Ezytrail owners with the Parkes & Ceduna models, utilising the existing cross member meant altering or spacing the Gripsport post as the front boot lid clashed with it. The only option was to install a cross member if there was room forward of the existing one. Fitting a Gripsport van rack is now as simple as installing our Bush Chook Mid-Post Tilting Mechanism. The front boot can be easily opened as the top of the post assembly swings out of the way, allowing full access, this is now as simple as removing the locating pin and tilting the post.
We have developed our very own Mid-Post Tilting Mechanism for van owners with a large hinged front opening boot, like some of the Jayco Sterling/Silverline models and some Euro brands. Previously there was no way to access the boot without removing the post, this is now as simple as removing the locating pin and tilting the post. Click the link below for more information.
Yes, but only if the manufacturer has given the appropriate weight rating on the bumper and two bikes will be the maximum number of bikes you can fit to any caravan rear bumper. *It is important to consider your rear overhang laws in your local state. Click the link below for further information.
Short drawbars are always an issue when installing van racks on the drawbar, the bikes need to be close to the van to give the back of the vehicle clearance to the rack when doing tight turns. This can be an issue if items like front windows need to be opened as they clash with the standard Gripsport tilting mechanism setup. Our solution is simple, install the new mid-post tilting mechanism allowing complete access. If your drawbar is short and you have a front opening window, our new Bush Chook Mid-Post Tilting Mechanism is perfect for this application.
Along with our new Bush Chook Mid-Post Kit, this is all that’s required to fit a functioning Gripsport rack to your van. The posts have several holes drilled to adjust the height if required.
carrier weights
- 1 bike – 14kg
- 2 bike – 16kg
- 3 bike – 29kg
- 4 bike – 34kg
bolt on mount weight
- 13kg
The weight of a van rack plus bikes will effect pretty much everything with your vehicle and van. For example, a 2 bike rack weighs 16kg and the bolt on mount 13kg. Add 2 bikes and all of a sudden you have an extra 50-60kg up front. Before installing a Gripsport van rack first check all of your vehicle and van weights including GVM Gross vehicle Mass), GCM (Gross Combined Mass), Rear Axle Loads, TBM (Tow ball Mass), (GTM Gross Trailer Mass) and ATM (Aggregate Trailer Mass). For further information select the link below.
If you find your “A” frame lacks the room required to install a cross member or use the Bolt-On Mount (extremely rare), or if you simply prefer to DIY, you can still fit your Van-Rack by fabricating (or having us fabricate for you), your own custom mount for it.
Select the link below for further information.
There are several different post types/sizes, in most applications a tall post will work but in some situations a short or quick release post is required. Note: If fitting our NEW Mid-Post tilting mechanism there is a separate post kit available for this application. For Further information select the link below.
No, GripSport does not include a lock with their racks. We recommend purchasing a strong lock for increased security, there are multiple points around your GripSport bike rack to run a lock through, including the frame of your bike.
All Hitch-mounted GripSport racks can be secured to your car with Gripsport’s Bike Rack Hitch Stabiliser and your own padlock. The stabiliser has a larger hole in the pin to accommodate a padlock.
No, due to heavy wind shear loads, it is not recommended to travel with a cover on the bikes. The forces exerted may cause damage to the bikes and rack.
Gripsport manufactures their own Premium Bike Cover which available to purchase, suitable for the 2-Bike Van Rack an 2-Bike GS-Adventure Rack. Please note: this cover is designed for storage purposes only.
The Gripsport Universal Cross Member (UCM) is an innovative bolt-on solution for mounting a GripSport bike rack or other accessories to your caravan or camper drawbar, without the need for welding. Designed for DIY fitment, the UCM ensures a seamless, low-profile installation while maintaining maximum strength and durability.
Whether you’re adding a bike rack or other essential gear, the Universal Cross Member (UCM) makes mounting simple, safe, and hassle-free.
Please Note: NOTE: UCM measurement is taken from outside to outside of the chassis rails, at the largest point where you want the cross member installed.
view the fitting guide
GripSport Universal Cross Member Fitting Guide
For all of the relevant info about van racks and to fully understand the correct procedure how to fit Gripsport van racks please check our GripSport Van Rack info and fitting guide. Also check our FAQ guide at the bottom of this page for even more information.
Select free assembly and fitting for more information on our free fitting service for Perth Metro customers for van racks – conditions apply (fabrication not included). Don’t pay $400-$500 to get your rack fitted.
features
- DIY Friendly – No need for specialist tools or trades—install it yourself with ease.
- Easy Bolt-On Installation – Securely mounts directly over your drawbar with no welding required.
- Low-Profile & Sleek Design – No bulky protrusions, ensuring a clean and streamlined fit.
- Adjustable Pivot Mechanism – Adapts to suit any drawbar angle for a perfect fit.
- Compatible with Conventional Mounts – Works with Bolt-on Mount & Post setups.
- Will fit most standard caravan chassis.
- If other accessories are obstructing your GripSport Bike Rack and/or GripSport Mount such as jockey wheels, stone guards, gas bottles and covers/mounts etc you may need to relocate other items accordingly.
Fitting Gripsport Bike Racks to Caravans Brief Description
Fitting Gripsport Bike Racks to Caravans Full Description
Fitting a Gripsport Van Rack to a Jayco Expanda type van
Fitting a Gripsport van rack to the back of a vehicle
Choosing The Correct Post Size
What will it cost to fit a Gripsport Van Rack?
Will a Gripsport Van Rack affect my tow ball weight?
Fitting Gripsport Van Racks to the back of caravans?
Assembly instructions Bush Chook Mid-Post Tilting Mechanism
Fitting a Gripsport Van Rack to vans with large front boots like a Jayco Silverline
Fitting a Gripsport Van Rack to Ezytrail Parkes and Ceduna Models
Fitting a Gripsport Van Rack to vans with short drawbars requiring front window access
